See the alley of House of Toilet from the north side with the warehouse on the left hand and the entrance of gentlemen's toilet room on the right hand in the late afternoon.
Foto © Future-scape Architects
See House of Toilet and the village of island on a slope in the morning. It is located at the point where the tourists take the breath after going up a steep hill.
Foto © Future-scape Architects

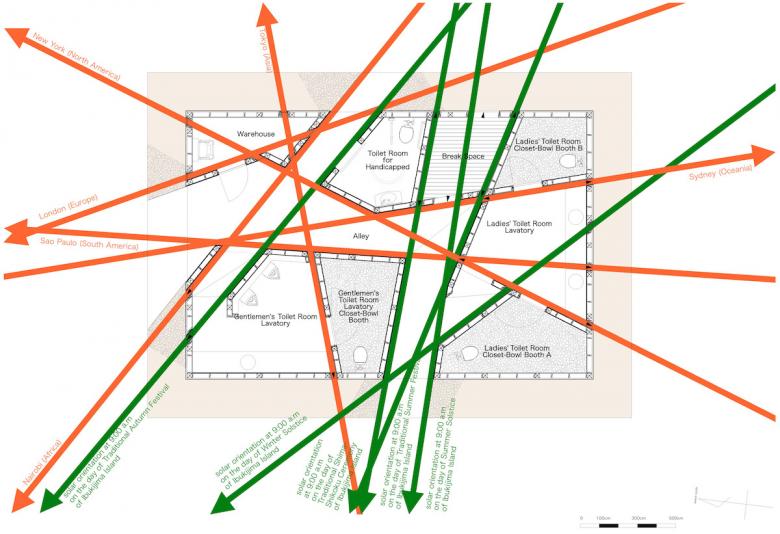

Eleven slits of light related to the island's time and space overlap on the architecture.
Disegno © Future-scape Architects

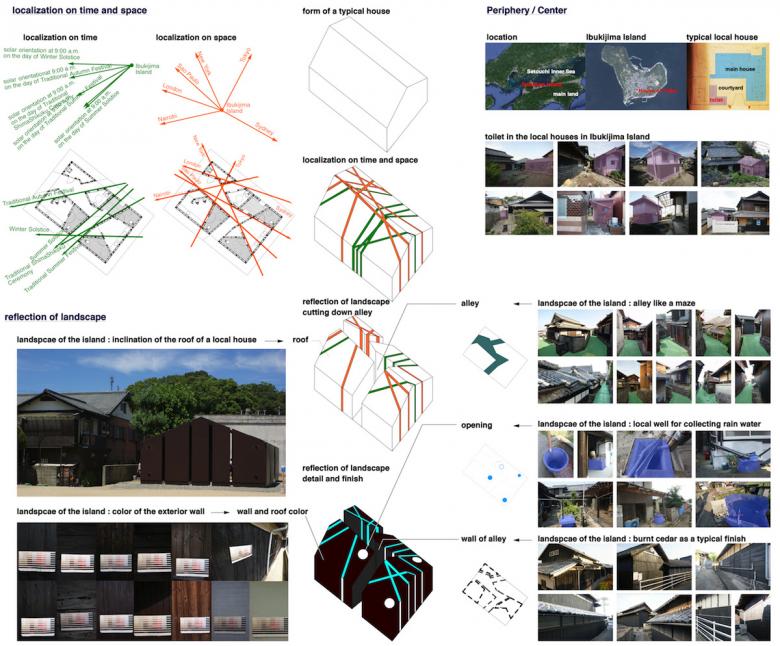

Diagram of the concept of the house of toilet. It shows the localization in time and space, and the reflection of various landscapes of island.
Immagine © Future-scape Architects
See the south side elevation and one of the slits which goes to Sao Paulo through the interior of the building and the alley.
Foto © Future-scape Architects
See the east side elevation. Beyond the slanting part of the wall is a break space. The floor of the break space is covered with the Japanese cypress board and they take off shoes and sit there.
Foto © Future-scape Architects
The pitch of roof is united with the typical roof of the local house of Ibukijima island. One of the slits which goes to Sydney passes inside the building and goes to the other side.
Foto © Future-scape Architects
(Left) See the alley between 3 parts of building. (Right) Detail of a slit of light.
Foto © Future-scape Architects
See the alley in the morning.
Foto © Future-scape Architects
See the alley in the evening of the winter.
Foto © Future-scape Architects
See the alley of House of Toilet from the west side with the ladies' toilet room on the right hand and the break space in the front.
Foto © Future-scape Architects

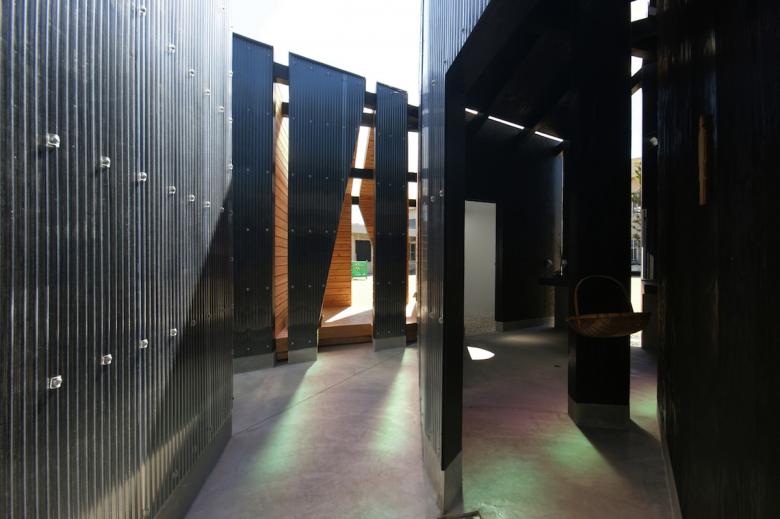

See the wall of the alley that reflects the scenery and the light of the island.
Foto © Future-scape Architects
See the interior of the washroom of the ladies' toilet room. The slits of light cross, and the state of the light in the interior changes according to the time.
Foto © Future-scape Architects
ee the interior of the washroom of the ladies' toilet room. The white room at the depth serves as the closet-bowl booth A. The slits of light cross, and the state of the light in the interior changes according to the time.
Foto © Future-scape Architects
See the interior of the washroom of the ladies' toilet room. The slits of light cross, and the state of the light in the interior changes according to the time.
Foto © Future-scape Architects
See the interior of the washroom of the gentlemen's toilet room. The light falls from the slit of lights on the ceiling. The chamber pot is arranged in a position that avoids the people’s eye walking the outside through the slits.
Foto © Future-scape Architects
See the interior of the washroom of the gentlemen's toilet room. The light falls from the slit of lights on the ceiling.
Foto © Future-scape Architects
See the interior of the washroom of the gentlemen's toilet room. The white room on the right hand serves as the closet-bowl booth. The entrance from the alley is seen on the light hand.t falls from the slit of lights on the ceiling.
Foto © Future-scape Architects

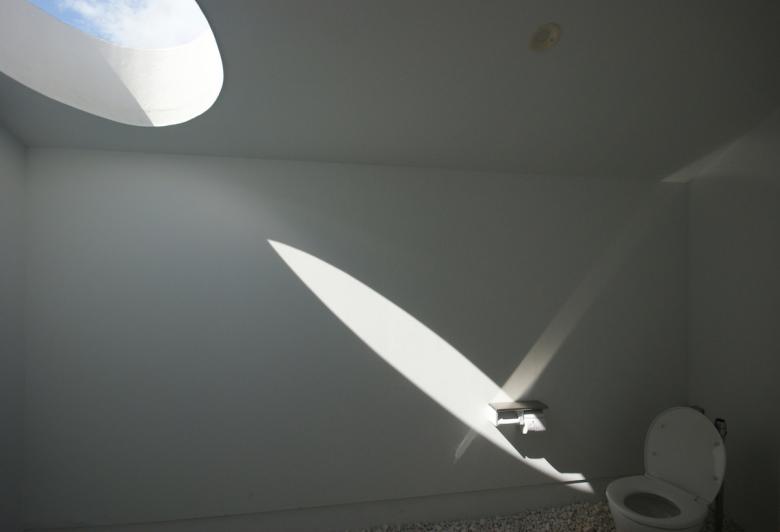

(Left) See the closet-bowl booth of the ladies' toilet room. The room has an opening on the ceiling and light pours and air passes. (Right) See the opening on the ceiling in the closet-bowl of the ladies' toilet room. The heart shape appears in the late afternonn from sprint to autumn.
Foto © Future-scape Architects
See the closet-bowl booth of the ladies' toilet room. The booth is quite large and its use is unaffected even in the rain. Under the gravel on the floor is a drainage hole to pick up rain.
Foto © Future-scape Architects
See the blue sky through the opening on the ceiling in the closet-bowl booth of the ladies' toilet room in the daytime.
Foto © Future-scape Architects
The model indicates how the light passes the slit of light.
Immagine © Future-scape Architects

House of Toilet

 Torna alla Lista di Progetti
Sede
Ibuki-jima Island, Kanonji-city, Kagawa, Japan
Anno
2013
Cliente
Kanonji city, 観音寺市
Structural Design
Takumi Design Office
Mechanical Design
Akeno Mechanical Design Laboratory
Construction
Ii Construction Company
3D Precut of Timber
Sanno Housing
FRP waterpfoofing
Hamanetsu

A public toilet was built on Ibukijima Island of Setouchi Inner Sea as one of the artworks in Art Setouchi Triennale 2013.

Periphery / Center
In the traditional local house in Ibukijima Island, the toilet is mostly established in a small cottage separated from the main house. In Ibukijima Island, the toilet is a peripheral space that is repelled and excluded from the main house.

The relation between the main house and the separated cottage resembles the relation between the mainland and isolated Ibuki-jima island or between a big city and a remote district somewhere. Now, Ibuki-jima island is only connected with a liner from Kanonji city on the mainland, and the small isolated island serves as the periphery of the mainland and the country of Japan. However, if it goes back to the Edo period, Ibuki-jima island was a place where liner connected directly with the capital, and the upper fashion came immediately, and, as a vestige of that period, the capital dialect of the old time remains. Once, it was the independent small center of Seto Inner See.

House of Toilet tends to change the peripheral space into the center of Ibuki-jima Island and to give intensity to Ibuki-ima Island that has been used as the periphery.

Locality / Internationlity
Eleven light slits related to time and space were overlapped.

Five of the eleven are time-related light slits. According to the direction of the sun at 9 am on three Traditional events and Summer Solstice and Winter Solstice Day, slits pass through the building. Once a year, at that time, a ray of light passes through the architecture, informing the islanders of the arrival of the season. It is a mechanism that shows the identity of the island in time, that is, the coordinates of the island in time.

Six of the eleven are space-related light slits. It shows the direction from Ibuki-jima Island to major cities on six continents (Tokyo, London, Nairobi, New York, Sao Paulo, and Sydney). The point where the axes of these six angles intersect is the coordinates indicating the position of Ibuki-jima Island in space, and the center is always Ibuki-jima Island. We expected the islanders to regain their pride through the connection with the world and the fact that each person is the center.

Connection with the landscape of the island
Various landscapes of the island overlapped with the architecture. We didn't refer to them as they are but added with a slight deviation to induct awareness.

The roof is aligned with the roof inclination of a local house, and the color of the outer wall is based on the color survey of a local house on the island. The alley created by the slit of light leads to the alley of Ibukijima like a maze. The wall of the alley and the interior wall of the lavatory are based on the image of the burnt cedar board as a typical finish but are not necessarily the same as it. They are slightly different due to the polycarbonate corrugated sheets that reflect the scenery on the surface. In the booth at the depth of the indoor, the big opening is opened on the roof. The natural light and the rainfall indoors. It is as if they have looked up from the bottom of the local well for collecting rainwater peculiar to the island's lack of water. When they go to the toilet booth at the back of the room, there is a big opening on the roof. Light and rain fall into the room, but drainage holes are provided under the gravel on the floor, and the walls and ceiling are made for outdoor use.

On Ibuki-jima Island, where water didn't exist, rainwater supported the lives of the islanders until 30 years before the opening of the water supply. The opening of the house of toilet is similar to the state that they look up from the bottom of a well dug in the ground to store rainwater. At the innermost part of the facility that uses water, it connects with the story of the island's water.

It is a place for tourists to see the scenery of the island and for the islanders to remind them of the island.
