Metaform architects

Residential Building with 15 Units

Dommeldange, Luxembourg, 2016
31. March 2017
PROJECT DETAILS

Location
Dommeldange, Luxembourg

Client
ASARS Construction

Architects
Metaform architects

Gross floor area
2,250 m²

Gross volume
8,000 m³

Year of completion
2016
Photo: Steve Troes Fotodesign (All photographs courtesy of v2com)
When it comes to housing, one of the main problems people are facing in most urban areas today – often places of constant growth and raising housing demands – is a need to choose an apartment typology over single-family houses not because of their desire, but out of necessity.
Their main concerns can be summed up as following:
  1. Typically, in people’s minds residential buildings often imply ‘a life in a box’, without living quality, feeling of belonging and identity; a lack of natural light and a view;
  2. Proximity to the neighbors resulting in the lack of privacy, both visual and acoustic;
  3. The insufficient physical space in various forms for a life of comfort.

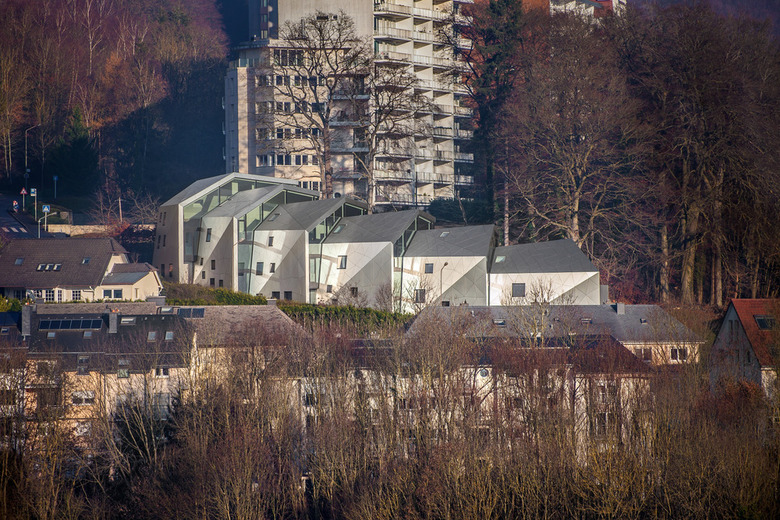

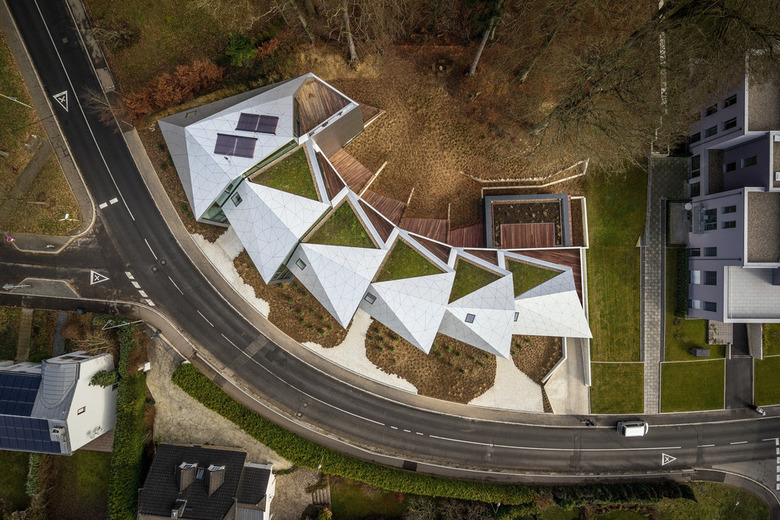

Context (Photo: Steve Troes Fotodesign)
The approach of Metaform architects was to carefully analyze these issues and respond by using them as a base point of transformation into resources, and furthermore into qualities, thus bringing a new vision of a collective housing typology.

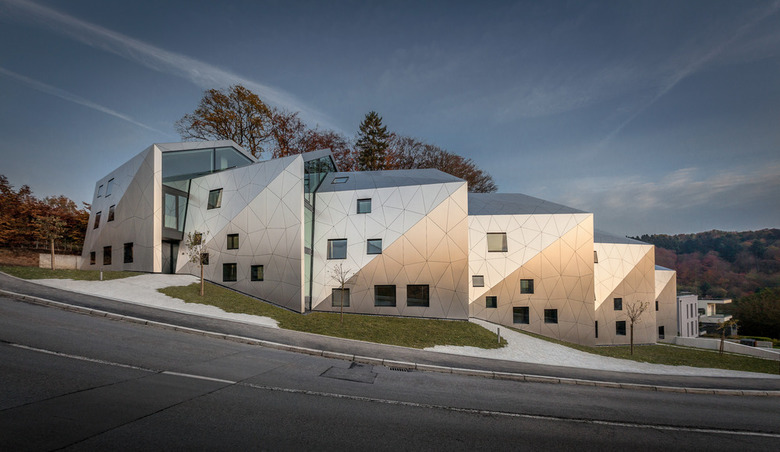

Street view (Photo: Steve Troes Fotodesign)
According to the municipal building regulations and consent, regardless of the peculiar topography, the regulations would allow for a simple single-block building, with a two-story flat basement. However, the surrounding context, specific terrain conditions and form of the plot offered a possibility for different experiment, while at the same time reflecting and responding to the named issues.

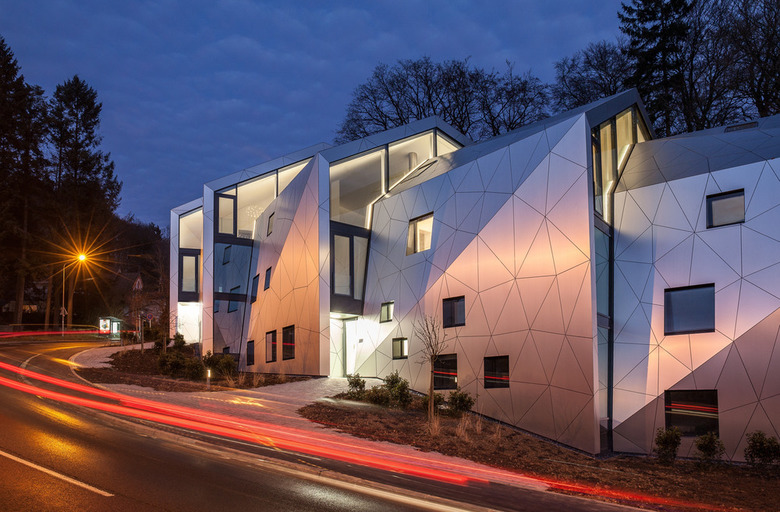

Night view (Photo: Steve Troes Fotodesign)
The plot is situated along a particularly curved street, a very steep topography with ten meters of difference in height and a preservation of three-century-old trees, classified as national monuments – all of these conditioned the initial shape of the building. Furthermore, the building responds to the specific urban context (small-scaled housing units on one side and large-scale apartment block on the other): it creates a subtle transition by splitting the main volume into six smaller, vertically shifted blocks. In this way, the building is adjusting to its surroundings; it preserves the required density, while nurturing the feeling of belonging, identity, human scale.

Volume splitting and shifting have been carefully studied to respond to a need for natural light, opening the panoramic views towards the landscape and the city and creating the visual contact with the sky, while at the same time allowing for the residents’ privacy.

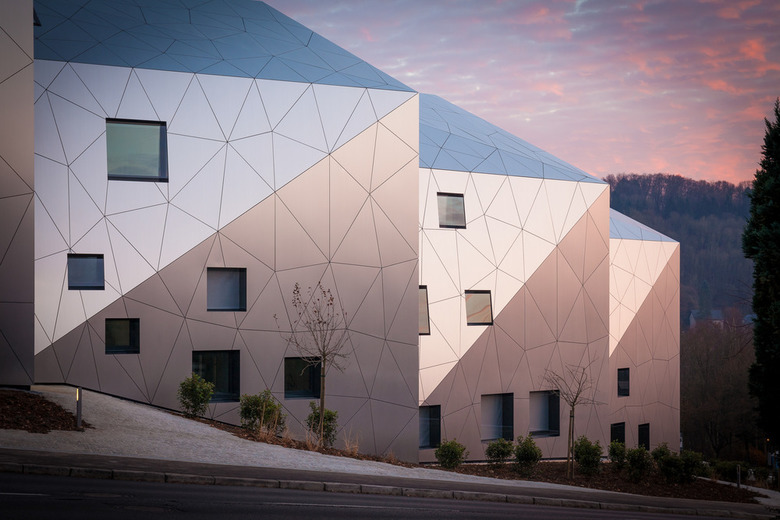

Facade (Photo: Steve Troes Fotodesign)
Another response to the privacy issues consists of enhancing the vertical communication, while eliminating long horizontal, often dark and acoustically unfavourable corridors. Three vertical cores connect underground parking directly to the apartments. This solution allowed for the transversal apartment configurations with three-side orientation.

On the other side, the architects had the idea to, apart from offering a privacy when needed, give residents a possibility to meet and get to know each other in a common shared indoor space. The facilities such as common kitchen, leisure room, games – are all designed and intended to bring value by improving social interaction and a sense of community living, on individual voluntary bases, while preserving the privacy and peace of others.

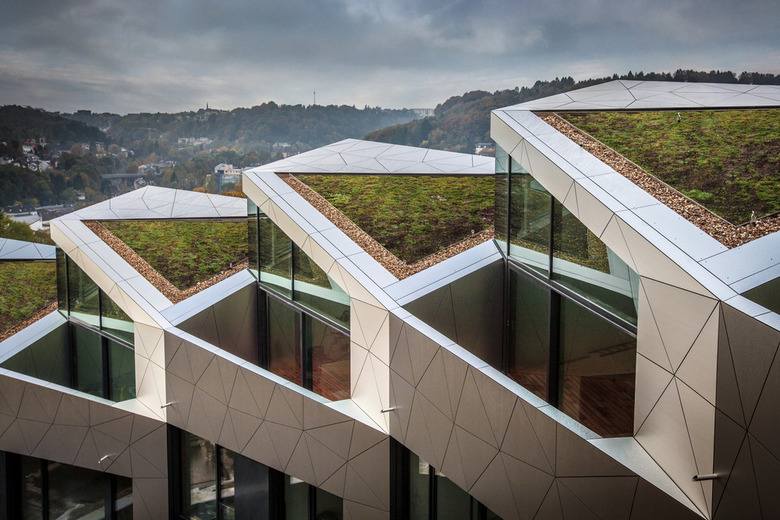

Garden view (Photo: Steve Troes Fotodesign)
Apart from creating the meeting common space that can accommodate common as well as private gatherings, the underground floors offer of a spacious storage for every apartment.

The overall aspiration was to ‘marry’ current housing needs and issues with specific conditions of the site; to design a collective housing building that offers people a sense of belonging, identity and community.

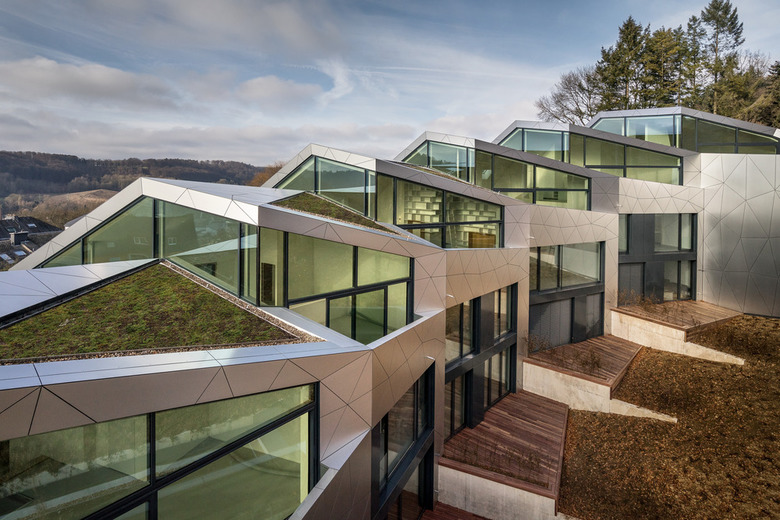

Garden view (Photo: Steve Troes Fotodesign)
Construction, materials, and structure
The building is made of a massive structure of reinforced concrete, faced with a ventilated facade made of triangular aluminium panels. The thermal insulation of the walls consists of mineral fibre. The openings are filled with three-layered glass in an aluminium frame. The large glass elements are specially coated with anti-UV film to prevent the building from overheating.

An important aspect of the energy concept of the building is the orientation; the large openings appear mainly on the south and eastern facades, whereas the north facade is mostly closed. According to Luxembourgish laws the building is classified as a low-energy building (Class B-B). A centralized ventilation system as well as solar panels for hot water production are also included in order to optimize the energy efficiency of the project.

The used facade materials have been chosen in order to allow for the minimal maintenance.

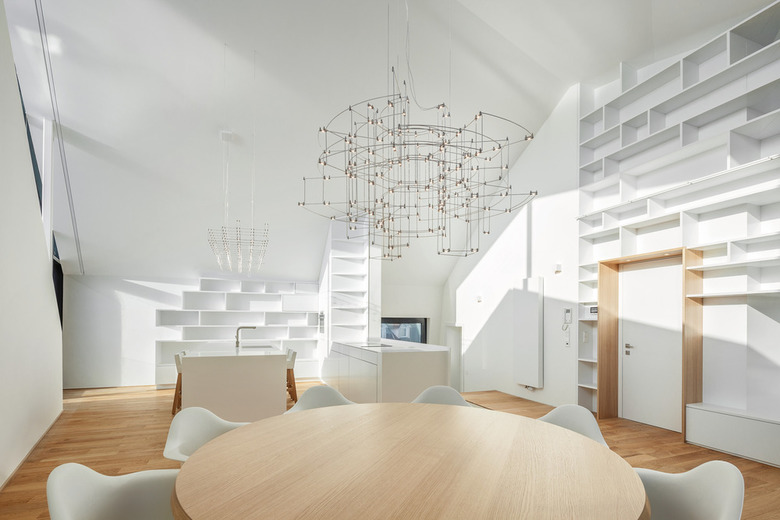

Interior (Photo: Steve Troes Fotodesign)

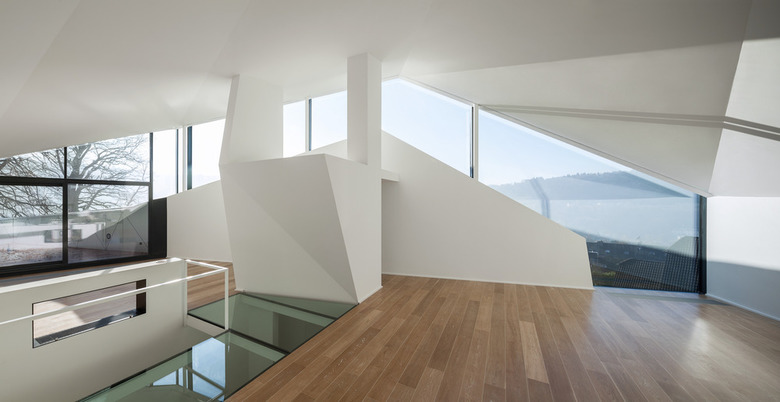

Interior (Photo: Steve Troes Fotodesign)

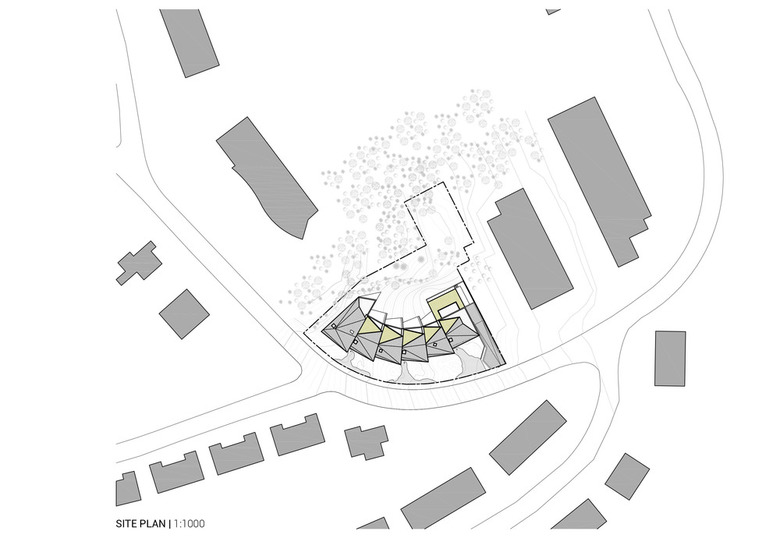

Site plan (Drawing: Metaform)

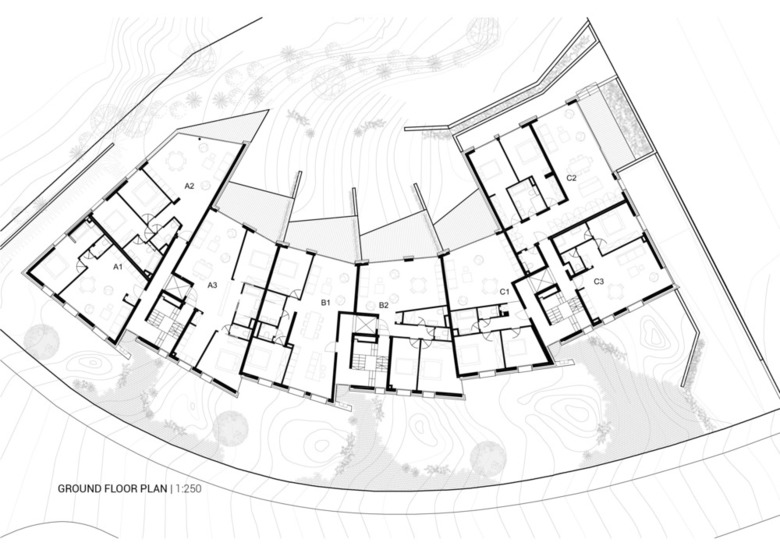

Ground floor plan (Drawing: Metaform)

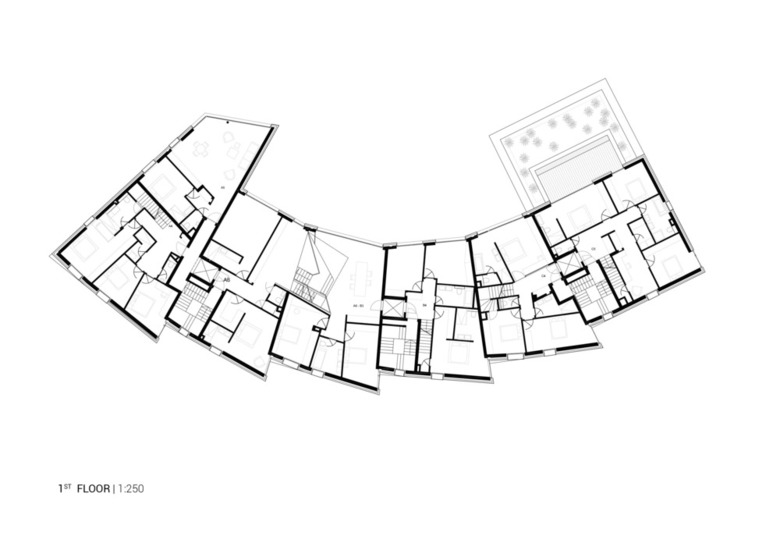

First floor plan (Drawing: Metaform)

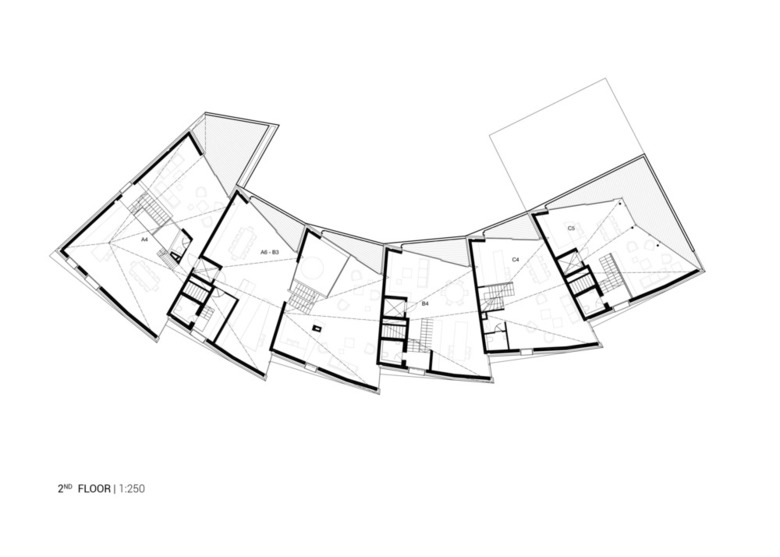

Second floor plan
