US Building of the Week
17. July 2023
Photo: Michael Moran
A diminutive new studio for artist Richard Erdman is clad in corrugated Cor-ten steel, a reference to the older structures on the artist's working farm in Vermont. The material is also a pleasing contrast to the white Carrara marble pieces Erdman is known for. Birdseye answered a few questions about their design of Annex.
Location: Williston, Vermont, USA
- Principal Architect: Brian J. Mac, FAIA
- Project Manager: Peter Abiles, AIA
Structural Engineer: Engineering Ventures
Interior Designer: Brooke Michelsen Design
Contractor: Red House Building
Site Area: 20 acres
Building Area: 1,720 sf
See bottom for Important Manufacturers / Products.
Photo: Michael MoranPlease provide an overview of the project.
Annex is an artist’s studio for stone sculptor Richard Erdman nestled in the Champlain Valley of Vermont. Equally inspired by both the artist’s sculptural language and the agrarian context of the site, it provides a new working studio for creating and displaying work.
In addition to his Vermont studio, Erdman also works in Carrara, Italy, where the marble is quarried and sculpted. Over the past four decades, he has created a renowned body of work that can be found in museums and private collections across the globe. Annex provides a space to continue this celebrated work and deepen its legacy.
Photo: Michael MoranWhat are the main ideas and inspirations influencing the design of the building?

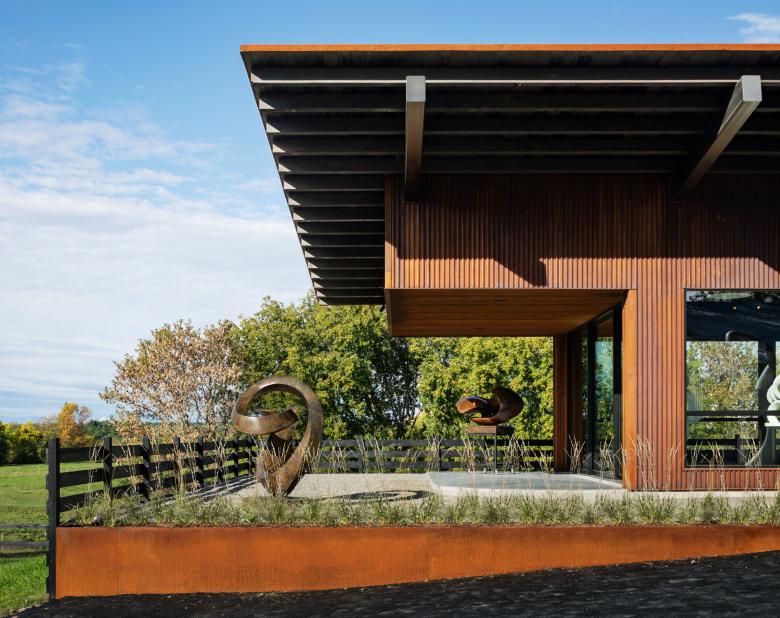

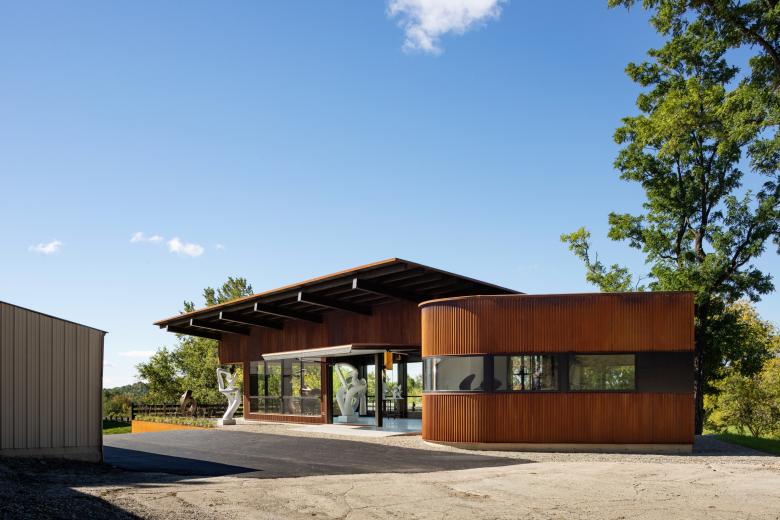

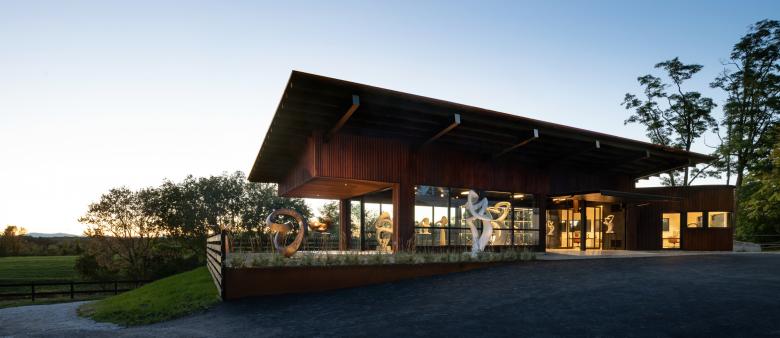

The structure is defined by a cantilevered shed clad in corrugated Cor-ten steel panels, influenced by the farm’s existing metal-clad buildings that serve as stables, barns, and utility sheds. Structural steel members are exposed under the roof overhang and inside the studio.

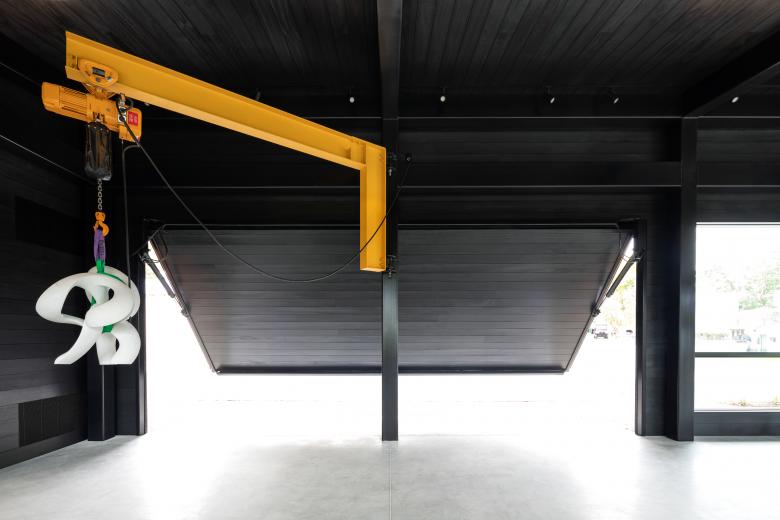

A hydraulic loading door with a flush threshold provides rolling access to the main studio space. Inside the door, a jib crane aids in the installation and removal of large-scale sculptures. Steel pedestals with casters allow the sculptures to be both easily moved and elegantly displayed.
Photo: Michael Moran

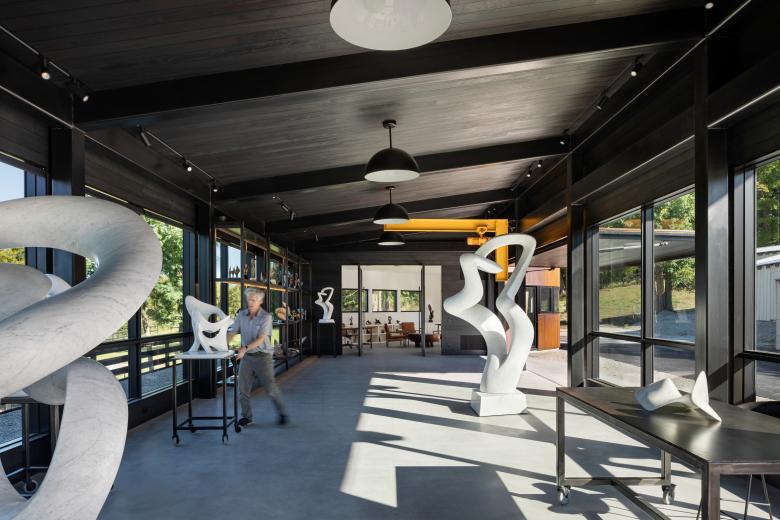

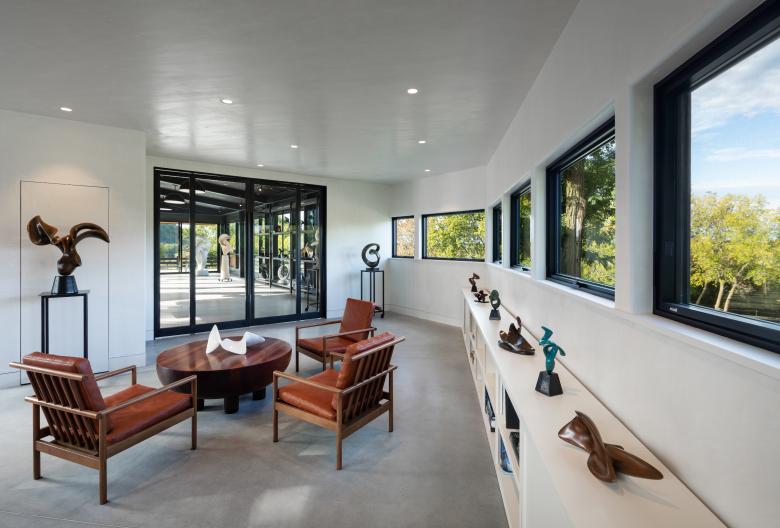

The interior spaces are minimal and open. A monumental steel shelving display is integrated into the space and window composition. The interior wall and ceiling finishes are black to contrast with the marble sculptures. Custom large scale metal pivot doors open into the white plaster office space and library. A large custom wood cabinet provides storage and maquette display, and a polished concrete floor adds to the durability, functionality, and overall minimalist aesthetic.
Photo: Michael MoranHow does the design respond to the unique qualities of the site?

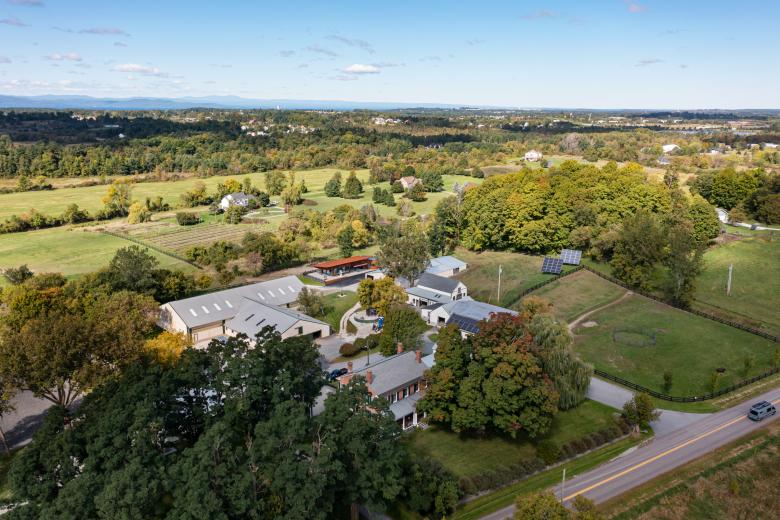

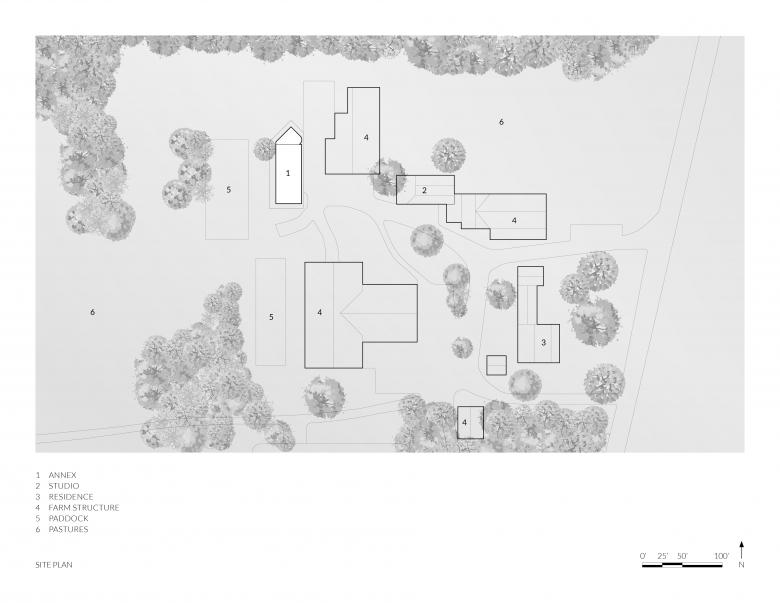

The studio is built on the grounds of the artist’s residence, a 20-acre working horse farm. The parcel includes multiple agrarian metal structures that function as stables, hay storage, and equipment storage. The project site was established at the northwestern corner of the farmyard to serve as a bookend to the existing buildings and paddocks. A raised plinth elevates the building above rolling pastures, providing distant views of the Adirondack Mountains across the valley.

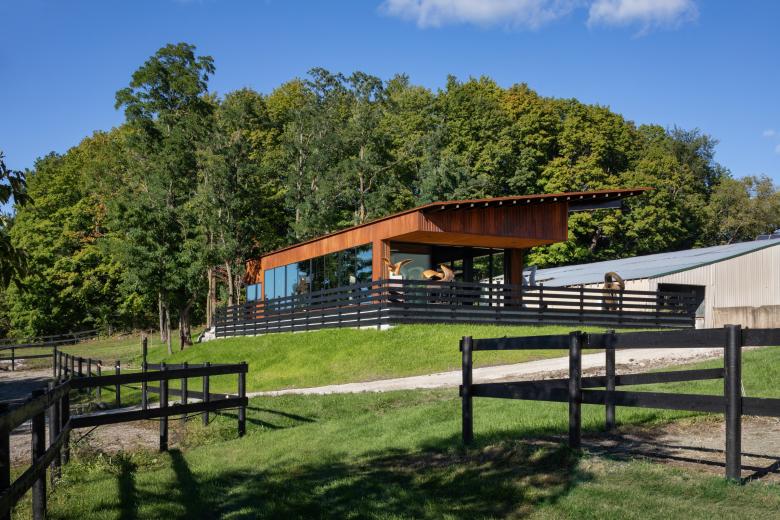

The landscape design takes cues from the horse pastures. The plinth is captured by wooden guardrails that mimic the fencing of neighboring paddocks. The ground cover is compacted stone that extends to an infinity edge at concrete walls to the south and west, and to a Corten steel edge to the east and north.
Photo: Michael MoranWas the project influenced by any trends in energy-conservation, construction, or design?
Energy conservation and ecological sensitivity are important considerations in the project. The building is all-electric, forgoing any use of fossil fuels on site. Heating and cooling are provided by an electric heat pump system, and ventilation is provided by large doors and operable windows. Natural plaster and Swedish pine tar finishes contribute to healthy indoor air quality. Abundant natural light is supplemented by LED fixtures that are purposeful to the sculptures. The permeable stone surface surrounding the building helps capture runoff and mitigate erosion through the site.
Email interview conducted by John Hill.
Photo: Michael MoranImportant Manufacturers / Products:
- Windows: Marvin Modern
- Hydraulic Door: Crown Doors Single-Swing Hydraulic System
- Crane: Harrington Jib Crane 1-Ton
- Interior Pivot Door Hardware: Fritsjurgen M32+SCD Pivot Hinge
